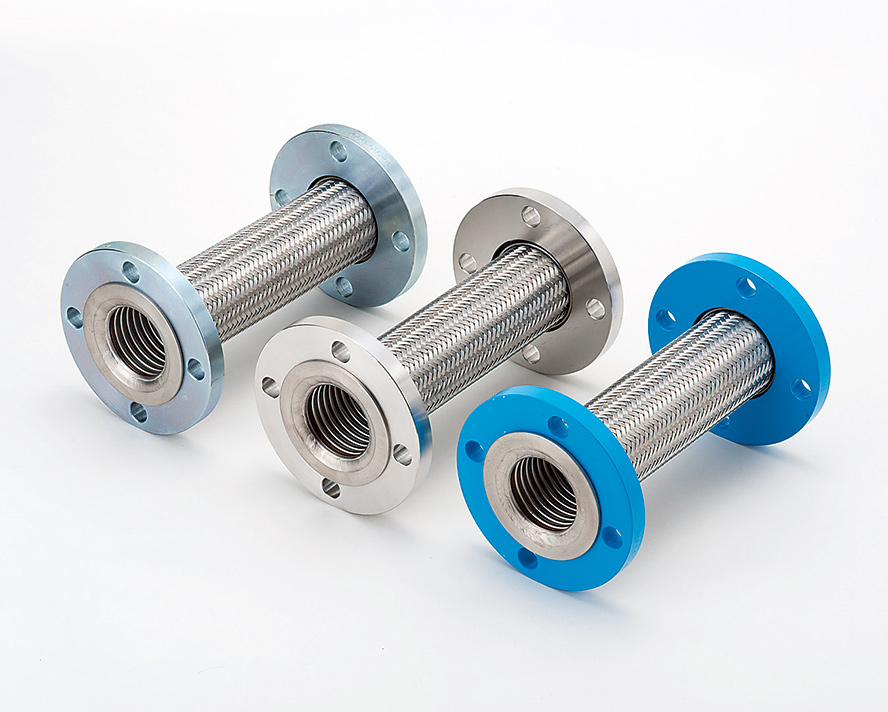

Flexible Hose
NK-VN3100

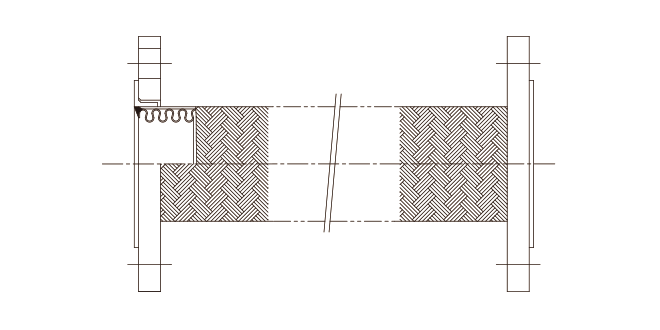

Loose Flange both Ends (Edge Welding Type)
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
APPLICATION
- Absorb Movement and Displacement
- Vibration and Noise Reduction
- Compensate for Misalignment
- Pressure and Temperature Resistance
- Extend Equipment Lifespan
FEATURES
- Applicable Media: Water, Oil, Air, Gas, Non-corrosive Chemical...etc
*For others, please contact us for consultation - Woking Pressure: Up to 1.6Mpa
*Higher Pressure is available on request - Working Temperature: -196 Deg. C ~ 450 Deg. C.
*Disregard working pressure - End Connection: JIS, DIN, EN, BS, ASME
*Special standard is available on request
**CS flanges are finished with Cr3+ plating or silver coating

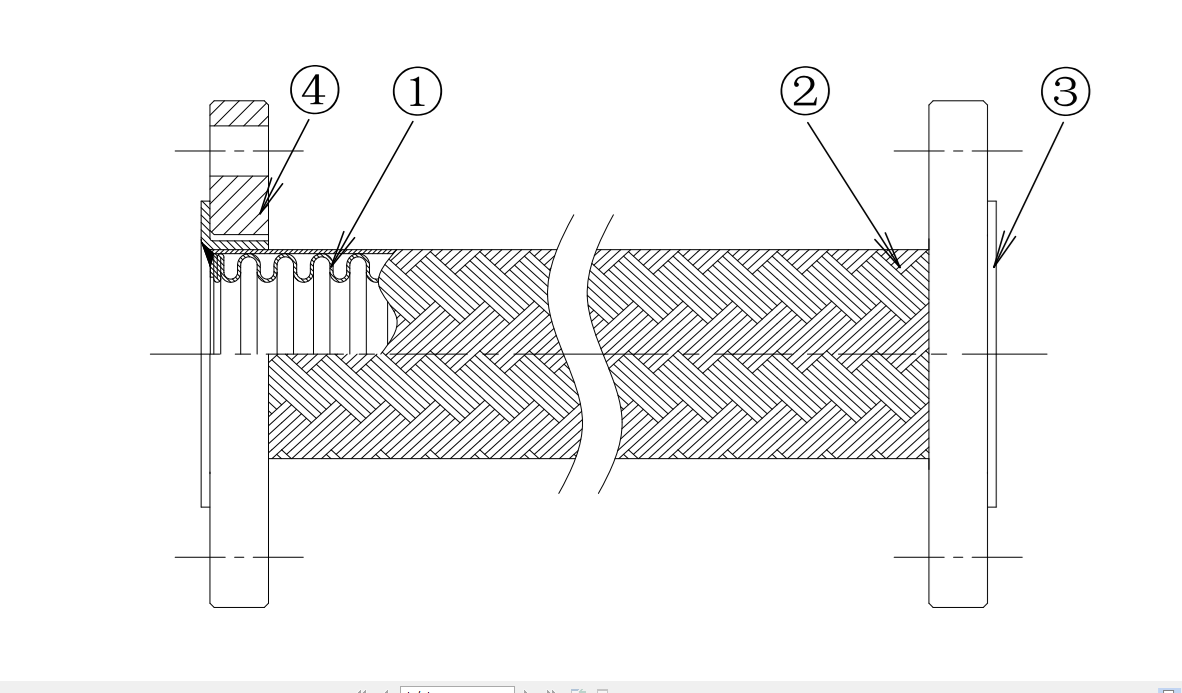

STRUCTURE
Materials
| 1. Tube | Stainless Steel (304 . 321 . 316L) |
| 2. Braid | Stainless Steel |
| 3. Flange collar | Stainless Steel |
| 4. Loose flange | Carbon Steel, Stainless Steel |
SPECIFICATION
Unit: mm
| Size | Min. Bending Radius | 300 OAL | 500 OAL | Min. OAL | |||
| DN | Inch | Effective Length | Lateral Movement | Effective Length | Lateral Movement | ||
| DN15 | 1/2 | 50 | 283 | 74 | 483 | 123 | 100 |
| DN20 | 3/4 | 65 | 280 | 64 | 480 | 123 | 100 |
| DN25 | 1 | 80 | 278 | 54 | 478 | 123 | 100 |
| DN32 | 1 1/4 | 100 | 274 | 37 | 474 | 113 | 100 |
| DN40 | 1 1/2 | 120 | 270 | 31 | 470 | 95 | 100 |
| DN50 | 2 | 140 | 266 | 24 | 466 | 75 | 100 |
| DN65 | 2 1/2 | 220 | 264 | 20 | 464 | 64 | 100 |
| DN80 | 3 | 280 | 262 | 22 | 462 | 66 | 150 |
| DN100 | 4 | 350 | 262 | 16 | 462 | 54 | 150 |
| DN125 | 5 | 380 | 254 | 13 | 454 | 43 | 150 |
| DN150 | 6 | 440 | 254 | 12 | 454 | 38 | 200 |
| DN200 | 8 | 620 | 254 | 10 | 454 | 32 | 200 |
| DN250 | 10 | 860 | 240 | 7 | 440 | 25 | 250 |
| DN300 | 12 | 900 | 240 | 6 | 440 | 21 | 300 |
Calculated on STD Tube, at 1.6 MPa and 40 °C
INSTALLATION GUIDE
• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to prevent
fatigue and failure.
• Twisting of metal flexible hoses should be avoided while installing and using as well.
• For guidance on dynamic movement, please contact us.
NOTES
• Best-fit product for Water handling and budget optimization.
• For Oil and Gas applications, it is recommended to switch to models NK-VN2500 or NK-VN2600.
• The information in this catalog may be subject to updates or modifications without prior notice.
• Special lengths are available on request.
