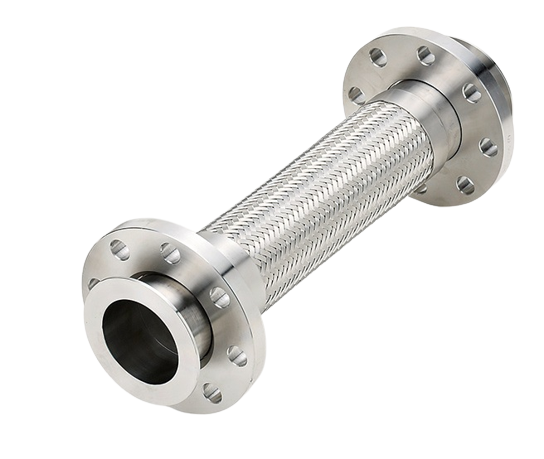

Flexible Hose
NK-VN3000EX
Fixed Flange Both Ends (Fillet Welding Type)
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
APPLICATION
- Absorb Movement and Displacement
- Vibration and Noise Reduction
- Compensate for Misalignment
- Pressure and Temperature Resistance
- Extend Equipment Lifespan
FEATURE
- Applicable Media: Water, Oil, Air, Gas, Steam, Non-corrosive Chemical...etc
*For others, please contact us for consultation - Working Pressure: Up to 1.6Mpa
*Higher Pressure is available on request - Working Temperature: -196 Deg. C ~ 450 Deg. C.
*Disregard working pressure" - End Connection: JIS, DIN, EN, BS, ASME
*Special standard is available on request
**CS flanges are finished with Cr3+ plating or silver coating.
STRUCTURE
Materials
| 1. Tube | Stainless Steel (304 . 321 . 316L) |
| 2. Braid | Stainless Steel |
| 3. Braid Sleeve | Stainless Steel |
| 4. Fixed Flange | Carbon Steel, Stainless Steel |
SPECIFICATION
Unit: mm
| Size | Min. Bending Radius | 300 OAL | 500 OAL | Min. OAL | |||
| DN | Inch | Effective Length | Lateral Movement | Effective Length | Lateral Movement | ||
| DN65 | 2 1/2 | 220 | 218 | 13 | 418 | 50 | 200 |
| DN80 | 3 | 280 | 214 | 13 | 414 | 50 | 200 |
| DN100 | 4 | 350 | 214 | 12 | 414 | 45 | 200 |
| DN125 | 5 | 350 | 204 | 9 | 404 | 33 | 250 |
| DN150 | 6 | 440 | 200 | 7 | 400 | 31 | 250 |
| DN200 | 8 | 620 | 196 | 7 | 396 | 26 | 250 |
| DN250 | 10 | 860 | 192 | 4 | 392 | 19 | 300 |
| DN300 | 12 | 900 | 192 | 4 | 392 | 16 | 300 |
Calculated on STD Tube, at 1.6 MPa and 40 °C
INSTALLATION GUIDE
• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to prevent fatigue and failure.
• Twisting of metal flexible hoses should be avoided while installing and using as well.
• For guidance on dynamic movement, please contact us.
NOTE
• The information in this catalog may be subject to updates or modifications without prior notice.
• Special lengths are available on request.
