Flexible Hose
NK-9100
For Fuel Tanks (Satisfied the fire law of A)
- Type C 40A～100A
- Type R 80A～100A
- Type NR 125A～200A
- Type B 80A～400A
- Origin: Japan
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
USE
- Adjustment of Piping Misalignment
- Absorption of Machine or Pump Vibration
- Connection of Machine and Pipe
- Prevention for Damage of Pipe and Equipment by Land Subsidence, Earthquake
- This product is not used for purpose of torsion movement absorption.
FEATURE
- Applicable tube: : Fire Fighting Tube
- Nominal Dia: 40A~400A
- Length: Appendix Length Table
*Please contact us about the length. - Operating temperature: 〜100℃
- Operating pressure: ~1.0MPa
Option
Type C 40A～100A
- Loose flanges both sides
- Using Lap Joint for connection
- Fire Fighting Tube
- (40A〜65A=t0.6)
- (80A〜100A=t1.0)
- Dedicated wire braid
- Using Lap Joint for connection
- Fire Fighting Tube
- (40A〜65A=t0.6)
- (80A〜100A=t1.0)
- Dedicated wire braid

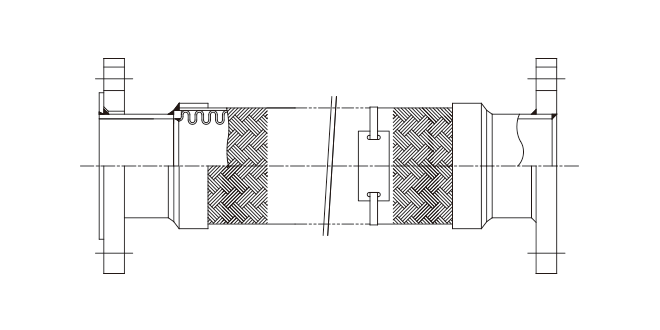

Type R 80A～100A
- Loose flanges one side or both sides
- Using Lap Joint for connection
- Fire Fighting Tube (t1.0)
- Dedicated wire braid
- Using Lap Joint for connection
- Fire Fighting Tube (t1.0)
- Dedicated wire braid
Type NR 125A～200A
- Loose flanges one side or both sides
- Using Lap Joint for connection
- Fire Fighting Tube (t1.2)
- Dedicated wire braid
- Using Lap Joint for connection
- Fire Fighting Tube (t1.2)
- Dedicated wire braid

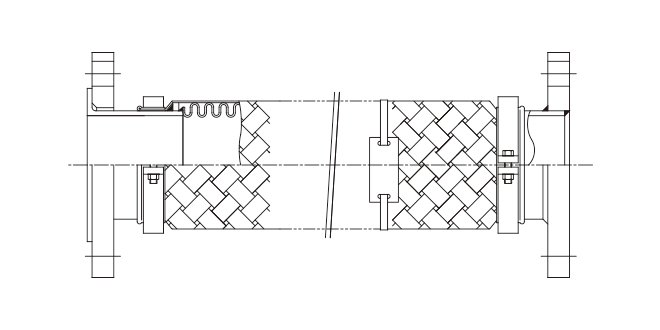

Type B 80A～400A
- Loose flanges one side or both sides
- Using Lap Joint for connection
- Fire Fighting Tube (t1.0～t2.0)
- Dedicated ribbon braid
- Using Lap Joint for connection
- Fire Fighting Tube (t1.0～t2.0)
- Dedicated ribbon braid
| DIA | Max Lateral Movement (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| A | Total Length (mm) | |||||||
| 40 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| 50 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| 65 | 600 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| 80 | 700 | 800 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 |
| 100 | 700 | 900 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 |
| 125 | 800 | 1000 | 1200 | 1300 | 1400 | 1500 | 1600 | 1800 |
| 150 | 800 | 1100 | 1300 | 1500 | 1600 | 1700 | 1800 | 1900 |
| 200 | 900 | 1200 | 1400 | 1500 | 1700 | 1800 | 1900 | 2100 |
| 250 | 1000 | 1400 | 1500 | 1700 | 2000 | 2100 | 2200 | 2300 |
| 300 | 1100 | 1400 | 1700 | 1900 | 2200 | 2300 | 2500 | 2600 |
| 350 | 1200 | 1500 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 |
| 400 | 1300 | 1600 | 2000 | 2200 | 2500 | 2700 | 2900 | 3200 |
