Flexible Hose
NK-VN1000
Female Union Both Ends - Socket Welding Type
- Best-fit product for water handling and budget optimization
- Low cost
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
APPLICATION
- Absorb Movement and Displacement
- Vibration and Noise Reduction
- Compensate for Misalignment
- Pressure and Temperature Resistance
- Extend Equipment Lifespan
FEATURES
- Applicable Media: Water, Oil, Air, Gas, Steam, Non-corrosive Chemical...etc
*For others, please contact us for consultation - Woking Pressure: Up to 1.6Mpa
*Higher Pressure is available on request - Working Temperature: -40 Deg. C ~ 200 Deg. C.
*Disregard working pressure - End Connection: BSPT, NPT
*Special standard is available on request

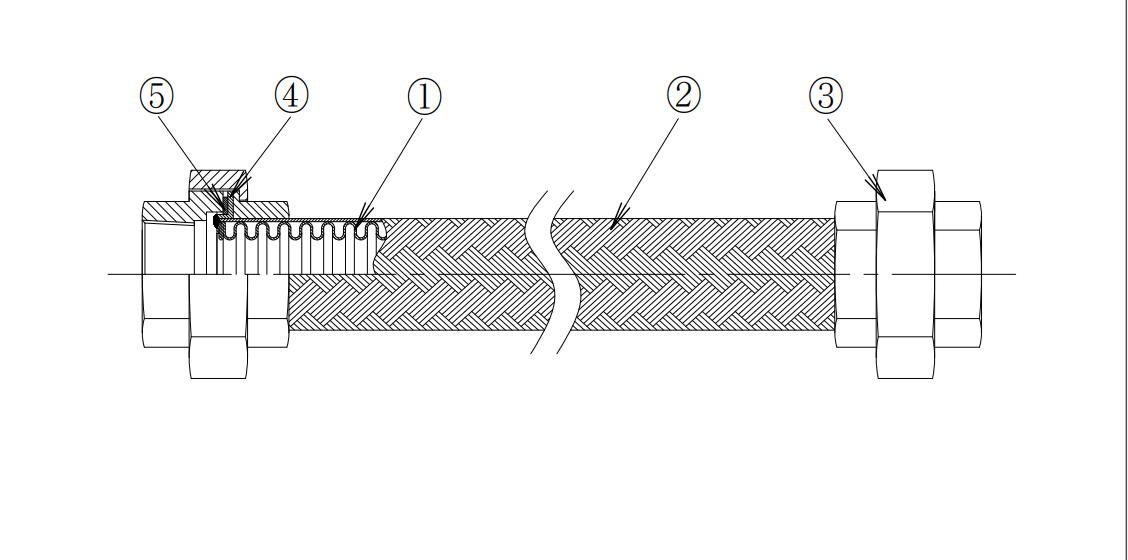

STRUCTURE
Materials
| Tube | Stainless Steel (304 . 321 . 316L) |
| Braid | Stainless Steel |
| Union fittings | FCMB, Cast Iron, Carbon Steel,Stainless Steel |
| Union collar | Stainless Steel |
| Gasket | Non asbestos |
SPECIFICATION
Unit: mm
| Size | Min. Bending Radius | 300 OAL | 500 OAL | Min. OAL | |||
| DN | Inch | Effective Length | Lateral Movement | Effective Length | Lateral Movement | ||
| DN15 | 1/2 | 50 | 184,2 | 38 | 384,2 | 123 | 200 |
| DN20 | 3/4 | 65 | 173 | 25 | 373 | 120 | 200 |
| DN25 | 1 | 80 | 155,2 | 17 | 355,2 | 90 | 200 |
| DN32 | 1 1/4 | 100 | 143,8 | 10 | 343,8 | 58 | 200 |
| DN40 | 1 1/2 | 120 | 129,6 | 7 | 329,6 | 46 | 200 |
| DN50 | 2 | 140 | 114,4 | 4 | 314,4 | 34 | 200 |
Calculated on STD Tube, at 1.6 MPa and 40 °C
INSTALLATION GUIDE
• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to preventfatigue and failure
• Twisting of metal flexible hoses should be avoided while installing and using as well
• For guidance on dynamic movement, please contact us
NOTE
• The information in this catalog may be subject to updates or modifications without prior notice.
• Special lengths are available on request.
