Flexible Hose
NK-VN6000S
Semi Jacket Type
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
APPLICATION
- Absorb Movement and Displacement
- Compensate for Misalignment
- Maintains desired temperature of conveyed fluid
- Shields inner hose from abrasion and environmental damage
- Prevents leaks and enhances compliance in hazardous fluid handling
FEATURES
- Applicable Media: Water, Oil, Gas, Steam, Non-corrosive chemicals
*For others, please contact us for consultation - Woking Pressure: Up to 1.0MPa
*Higher Pressure is available on request - Working Temperature: -196 Deg. C ~ 450 Deg. C.
*Disregard working pressure - End Connection: JIS, DIN, EN, BS, ASME
*Special standard is available on request

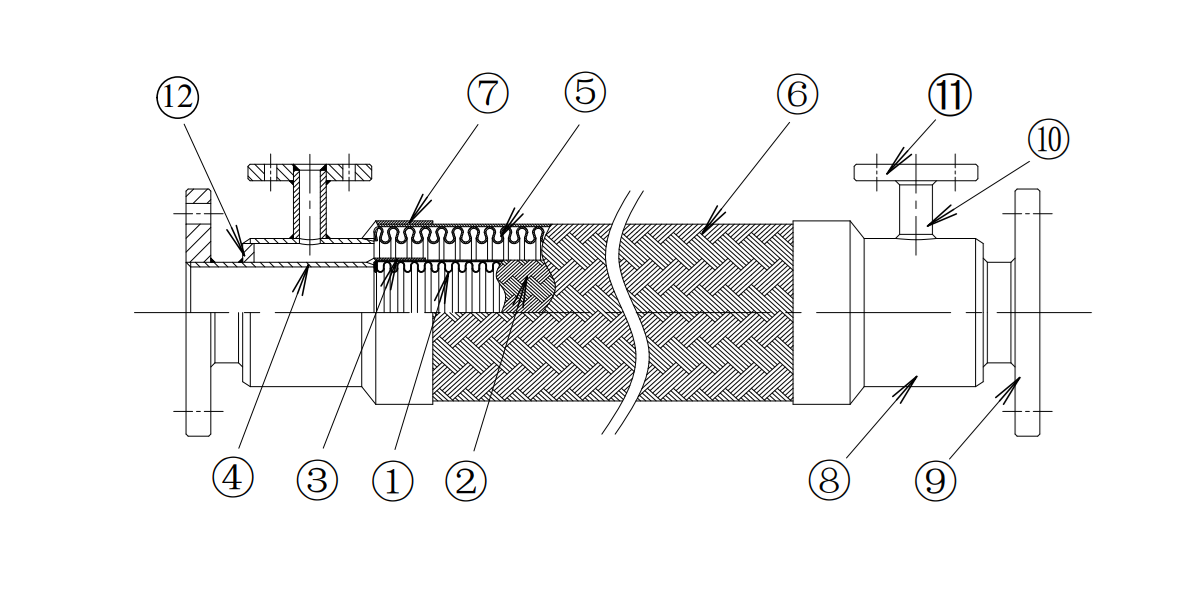

STRUCTURE
Materials
| 1. Inner tube | Stainless Steel (304 . 316L) |
| 2. Inner braid | Stainless Steel |
| 3. Braid sleeve 1 | Stainless Steel |
| 4. Inner pipe | Carbon Steel . Stainless Steel |
| 5. Outer tube | Stainless Steel (304 . 321 . 316L) |
| 6. Outer braid | Stainless Steel |
| 7. Braid sleeve 2 | Stainless Steel |
| 8. Outer pipe | Carbon Steel . Stainless Steel |
| 9. Fixed flange 1 | Carbon Steel . Stainless Steel |
| 10. Plug | Carbon Steel . Stainless Steel |
| 11. Fixed flange 2 | Carbon Steel . Stainless Steel |
| 12. Neck Ring | Carbon Steel . Stainless Steel |
INSTALLATION GUIDE
• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to prevent
fatigue and failure.
• Twisting of metal flexible hoses should be avoided while installing and using as well.
• For guidance on dynamic movement, please contact us.
NOTES
• Best suited for applications requiring controlled temperature, safety, and long‑lasting fluid transfer.
• The information in this catalog may be subject to updates or modifications without prior notice.
• Special lengths are available on request.
