Flexible Hose

NK-VN4000

Lap Joint Flange on one End, Fixed Flange on other (Ribbon Braid Type)
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
NK-VN4000

APPLICATION

  • Absorb Movement and Displacement
  • Vibration and Noise Reduction
  • Compensate for Misalignment
  • Pressure and Temperature Resistance
  • Extend Equipment Lifespan

FEATURES

  • Applicable Media: Water, Oil, Air, Gas, Steam, Non-corrosive Chemical...etc
    *For others, please contact us for consultation
  • Woking Pressure: Up to 1.0Mpa
    *Higher Pressure is available on request
  • Working Temperature: -196 Deg. C ~ 450 Deg. C.
    *Disregard working pressure
  • End Connection: JIS, DIN, EN, BS, ASME
    *Special standard is available on request
    **CS flanges are finished with Cr3+ plating or silver coating.

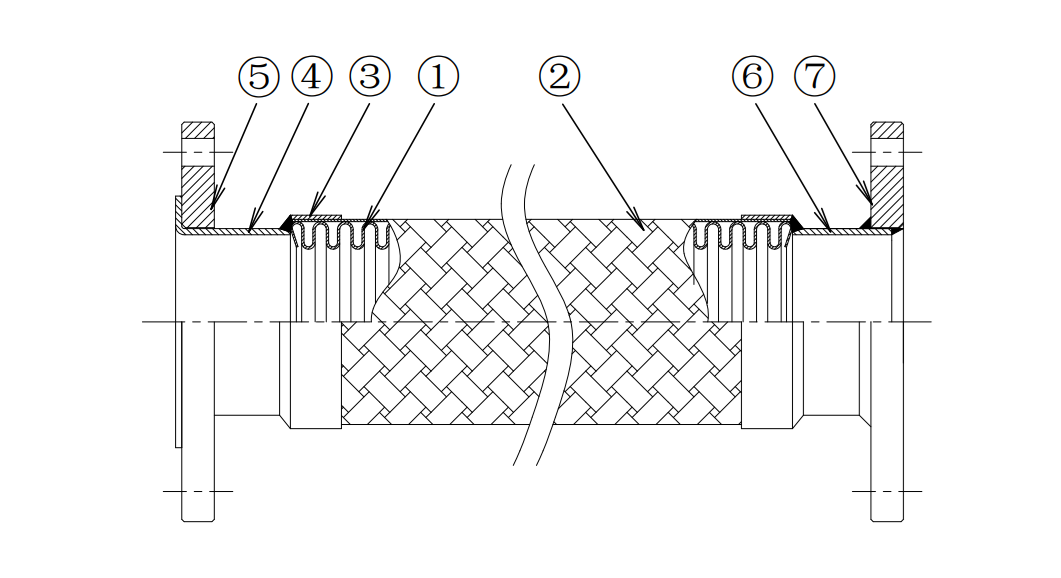

STRUCTURE

STRUCTURE
Materials
1. Tube Stainless Steel (304 . 321 . 316L)
2. Braid Stainless Steel
3. Braid sleeve Stainless Steel
4. Lap joint Carbon Steel, Stainless Steel
5. Loose flange Carbon Steel, Stainless Steel
6. End pipe Carbon Steel, Stainless Steel
7. Fixed flange Carbon Steel, Stainless Steel
View Steel Types

SPECIFICATION

Unit: mm

Size Min. Bending Radius 300 OAL 500 OAL Min. OAL
DN Inch Effective Length Lateral Movement Effective Length Lateral Movement
DN80 3 280 150 7 350 37 300
DN100 4 350 150 6 350 31 300
DN125 5 380 144 4 344 24 300
DN150 6 440 144 3 344 22 300
DN200 8 620 110 2 310 15 300
DN250 10 860 110 1 310 11 300
DN300 12 900 – – 310 9 400

Calculated on STD Tube, at 1.6 MPa and 40 °C

INSTALLATION GUIDE

• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to prevent
fatigue and failure.

• Twisting of metal flexible hoses should be avoided while installing and using as well.

• For guidance on dynamic movement, please contact us.

NOTES

• The information in this catalog may be subject to updates or modifications without prior notice.

• Special lengths are available on request.
