Flexible Hose
NK-VN2300PT
Tube End Type
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
APPLICATION
- Easy installation and adjustment
- Resistant to collapse under vacuum
- Absorb Movement and Displacement
- Vibration and Noise Reduction
- Compensate for Misalignment
FEATURES
- Applicable Media: Water, Air, Gas
- Woking Pressure: FV ~ 0.3MPa
- Working Temperature: -15 Deg. C ~ 150 Deg. C.
*Disregard working pressure - End Connection: JIS
*Special standard is available on request

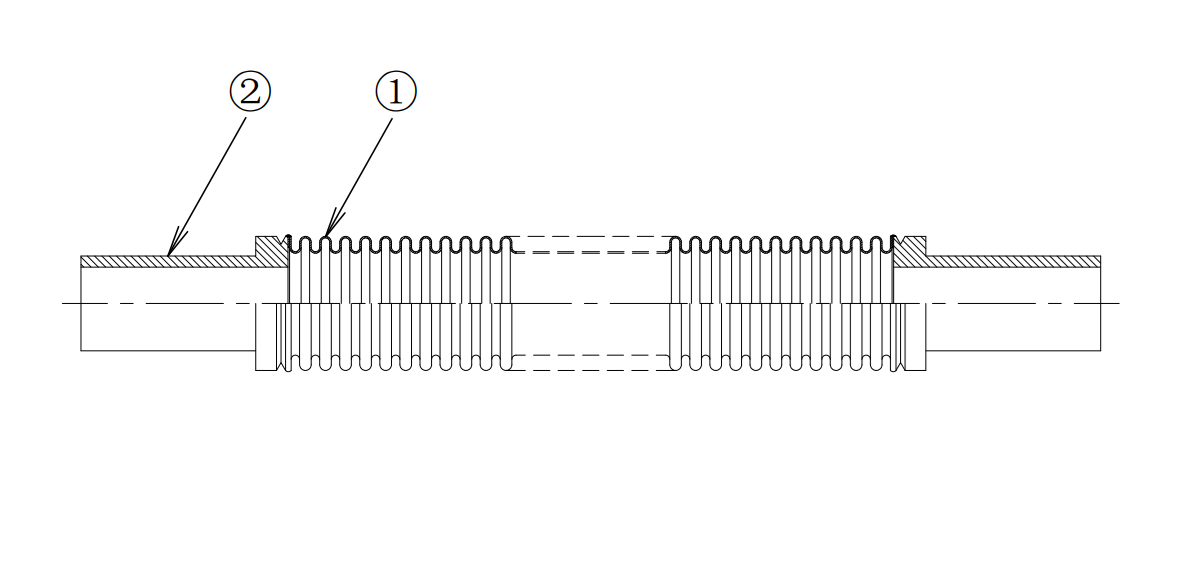

STRUCTURE
Materials
| 1. Tube | Stainless Steel (304 . 316L) |
| 2. End Pipe | Stainless Steel |
SPECIFICATION
Unit: mm
| Size | Tube information | End pipe information | Min. OAL | |||||
| DN | Inch | ID | OD | Min. Bending Radius | PD | PT | PL | |
| DN3 | – | 3.5 | 5 | 25 | 3.18 | 0.79 | 15 | 100 |
| DN6 | 1/4 | 5.5 | 8.5 | 25 | 6.35 | 0.92 | 20 | 100 |
| DN10 | 3/8 | 10 | 13.5 | 35 | 9.52 | 1.26 | 25 | 100 |
| DN15 | 1/2 | 12.5 | 16.5 | 40 | 12.7 | 1.35 | 30 | 100 |
Calculated on CLT Tube at -0.3Mpa, 40 Deg. C
INSTALLATION GUIDE
• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to prevent
fatigue and failure.
• Twisting of metal flexible hoses should be avoided while installing and using as well.
• For guidance on dynamic movement, please contact us.
NOTES
• The information in this catalog may be subject to updates or modifications without prior notice.
• Special lengths are available on request.
