Flexible Hose
NK-VN5600
Lap Joint Flange both Ends (Braid-over Type)
※ Click the button below if you are interested in this product.
※ On the Contact/Checklist page. You can check the selected product.
APPLICATION
- Absorb Movement and Displacement
- Vibration and Noise Reduction
- Compensate for Misalignment
- Pressure and Temperature Resistance
- Extend Equipment Lifespan
FEATURES
- Applicable Media: Water, Oil, Air, Gas, Steam, Non-corrosive Chemical...etc
*For others, please contact us for consultation - Woking Pressure: Up to 2.0Mpa
*Higher Pressure is available on request - Working Temperature: -196 Deg. C ~ 450 Deg. C.
*Disregard working pressure - End Connection: JIS, DIN, EN, BS, ASME
*Special standard is available on request
**CS flanges are finished with Cr3+ plating or silver coating

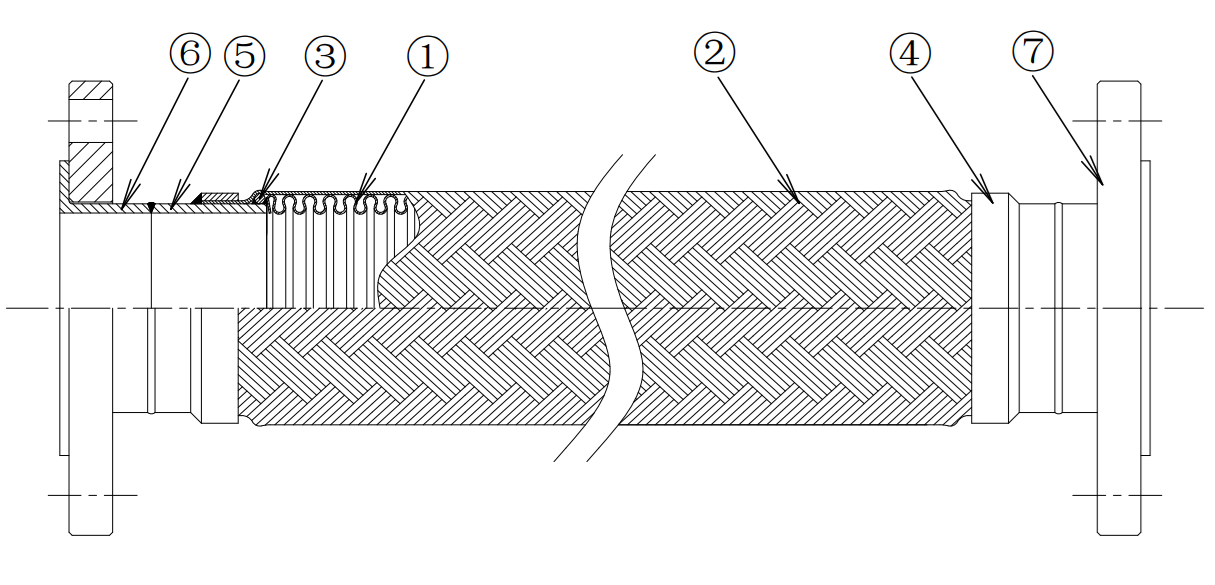

STRUCTURE
Materials
| 1. Tube | Stainless Steel (304 . 321 . 316L) |
| 2. Braid | Stainless Steel |
| 3. Neck ring | Carbon Steel, Stainless Steel |
| 4. Braid sleeve | Carbon Steel, Stainless Steel |
| 5. End pipe | Carbon Steel, Stainless Steel |
| 6. Lap joint | Carbon Steel, Stainless Steel |
| 7. Loose flange | Carbon Steel, Stainless Steel |
SPECIFICATION
Unit: mm
| Size | Min. Bending Radius | 300 OAL | 500 OAL | Min. OAL | |||
| DN | Inch | Effective Length | Lateral Movement | Effective Length | Lateral Movement | ||
| DN65 | 2 1/2 | 150 | 300 | 42 | 800 | 245 | 300 |
| DN80 | 3 | 220 | 300 | 38 | 800 | 245 | 400 |
| DN100 | 4 | 280 | 300 | 31 | 800 | 230 | 400 |
| DN125 | 5 | 350 | 260 | 18 | 760 | 160 | 500 |
| DN150 | 6 | 400 | 260 | 15 | 760 | 145 | 500 |
| DN200 | 8 | 600 | 220 | 9 | 720 | 100 | 500 |
| DN250 | 10 | 700 | 200 | 5 | 700 | 75 | 500 |
| DN300 | 12 | 900 | 180 | 3 | 680 | 55 | 500 |
Calculated on SA Tube, at 1.0 MPa and 40 °C
INSTALLATION GUIDE
• Metal flexible hoses should be bent and used only to the radius and lateral movement specified in their guidelines to prevent
fatigue and failure.
• Twisting of metal flexible hoses should be avoided while installing and using as well.
• For guidance on dynamic movement, please contact us.
NOTES
• Better optimized than NK-VN2600 for long-length requirements.
• Preferred option for Oil and Gas applications.
• The information in this catalog may be subject to updates or modifications without prior notice.
• Special lengths are available on request.
